x商品の詳細
| 製品名 | 鋳型アルミニウム部品 | 壁の平均厚さ | >3mm |
|---|---|---|---|
| 表面処理 | 研磨、サンドブラスト、塗装アルマイト電気メッキなど | サービス | oem \ odm |
| プロセス | 鋳造+加工 (必要に応じて) +表面処理 | サイズ | 必要な顧客の引くこと |
| 製品材料 | アル | カスタマイズ | はい |
| ハイライト | custom A356 aluminum gravity castings,permanent mold casting service,aluminum alloy gravity die casting |
||
製品の説明
Custom Service Permanent Mold Casting A356 Gravity Casting Aluminum Alloy Gravity Castings
Aluminium Gravity Die Casting Description
Achieve exceptional surface quality and precise detail replication with our aluminium gravity die casting capabilities. The steel molds produce components with smooth surfaces (typically Ra 3.2-6.3 μm) that often require minimal post-processing. Fine details, logos, and complex features are accurately reproduced, making our castings ideal for both functional and aesthetic applications.
Drawing: Provide by customer, or design according as the sample
Drwing format: Pro/E, AutoCAD, Solidworks, CAXA, UG, CAD, CAM, CAE, STP, IGES, etc.
Mould: Design and produce by ourself
Aluminium Gravity Die Casting Parameters
| Name | Aluminium Gravity Die Casting Mould | |||
| Material: | Aluminum (6061-T6, 6063, 7075-T6,5052) etc. | |||
| Machining Process: | CNC Machining, CNC turning, CNC milling, CNC lathe machining, CNC boring, grinding | |||
| CNC drilling etc. | ||||
| Surface treatment: | Clear/color anodized; Hard anodized; Powder-coating; | |||
| Sand-blasting; Painting; | ||||
| Nickel plating; Chrome plating; Zinc plating; | ||||
| Black oxide coating, Polishing,wire drawing etc... | ||||
| Gerenal Tolerance: | CNC Machining: 0.015 | |||
| (+/-mm) | Turning: 0.015 | |||
| Grinding(Flatness/in2): 0.015 | ||||
| ID/OD Grinding: 0.015 | ||||
| Wire-Cutting: 0.03 | ||||
| Production capacity: | depend on complicacy of different products and the quantity | |||
| Experience: | 10 years of CNC machining products | |||
| 10 years of casting products | ||||
| 5 years of forging products | ||||
| We have a senior design team to offer perfect modification suggestions. | ||||
Die Casting Manufacturing Process Features
- Engineering With Accuracy and Stability Dimensional
- Easily Assembled and Disassembled
- Low maintenance
- Longer life
- Fine finish
- High strength
- Rugged design
- Durable nature
Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery
Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.

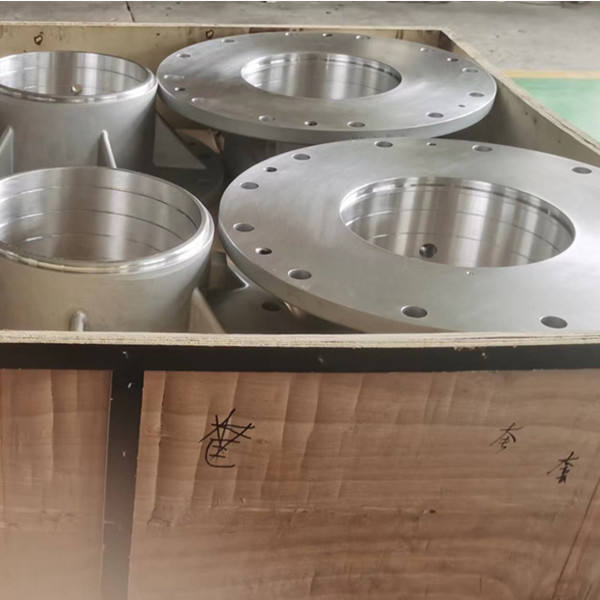

Packaging & Shipping
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you on time and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world. We can also customize the packing method according to customers' needs. Suitable for seaway transportation.
Company profile
Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.
Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
